ICP DAS Machine to Machine Communication

The G-4500 series provided by ICP DAS are M2M (Machine to Machine) mini programmable controller are widely praised and loved in the world. Now, we provide the G-4500-3GWA series built-in a Tri-band 3G module to support UMTS, HSDPA, HSUPA, GSM and GPRS. With a powerful processor to optimize performance on advanced broadband data networks, the G-4500-3GWA series is widely applied in various applications like hydrographic monitoring, intelligent power, flow meter report system and GPS car-tracking system. Therefore, the G-4500-3GWA is a flexible platform for industrial wireless platform to 3G technology applications.

In traditional application, users need a master controller to integrate a telecommunication modem with developing cellular programs into the host. That would waste much time to integrate the various communication interfaces. Now, we have G-4500 series to solve the hardware integration problems with easy-to-used libraries. The G-4500 series built-in MiniOS7 provide the same development environment with I-7188/I-7186 series. It is easier for I-7188/I-7186 users to apply the G-4500 series.

The G-4500 series applications can be divided into 2 parts: One part is the fixed intelligent remote management equipment such as water monitor system, vending machine system, remote machine monitor, home security, POS system, power measurement system and etc. Another kind of application is movement management equipment such as vehicle management system, maritime system, taxi dispatch system, and etc. Anyway, the G-4500 can save the cost and development time for users.

Applications

Application 1 : Remote Control/Monitor System

Application 2: Car Monitor System

Application 3: GIS system

Application 4: Redundant Communication System



Features

• Embedded MiniOS7, anti-virus
• Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
• 10/100Base-TX Ethernet Controller

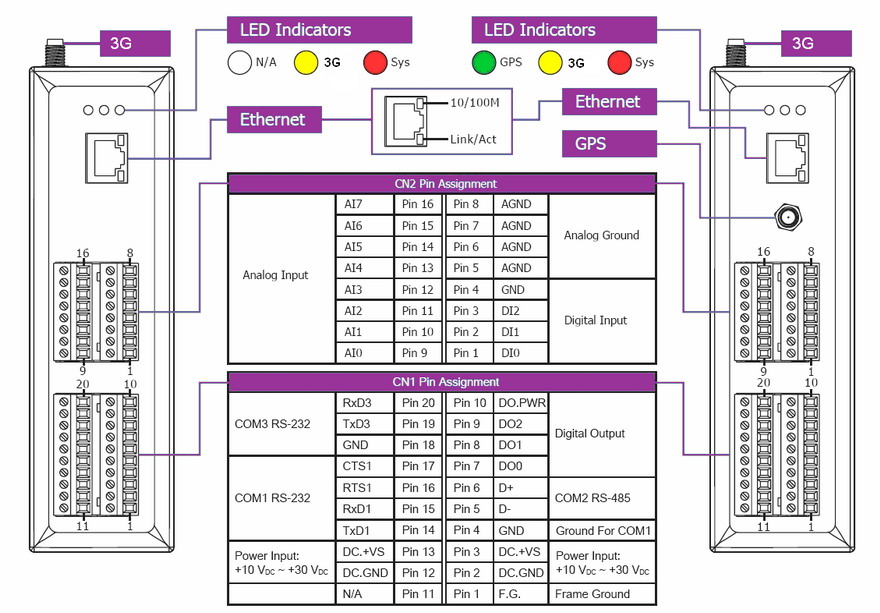

• COM port: COM1 (5-wire RS-232), COM2 (RS-485), COM3 (3-wire RS-232)
• Built-in self-tuner ASIC controller on RS-485 port
• I/O: 3 channel DI, 3 channel DO, 8 channel AI
• Support SD storage card
• Tri-band 2100/1900/850 MHz WCDMA supporting UMTS / HSDPA / HSUPA
• Quad-band 850/900/1800/1900 MHz GSM supporting GPRS
• Support TCP server, TCP client, UDP client connection from GPRS
• GPS : 32 channels with All-In-View tracking (option)
• 128*64 dots LCM display (only for G-4500D-3GWA and G-4500PD-3GWA)
• Support Virtual COM technology
• Support Modbus Protocol
• High reliability in harsh environment
• Free easy-to-use software development toolkits

Comparison Table
