I-7018Z: 10 Channel Voltage & Current Thermocouple Input Data Acquisition Module with High Accuracy, High ESD Protection, communicable over RS-485, FREE EZ Data Logger Software and short cable

I-7018Z

E-mail this Product

Product Reference & Support :

User's Manual

Development software & drivers

Cut Sheet

FREE EZ Data Logger Software

PIN Assignment

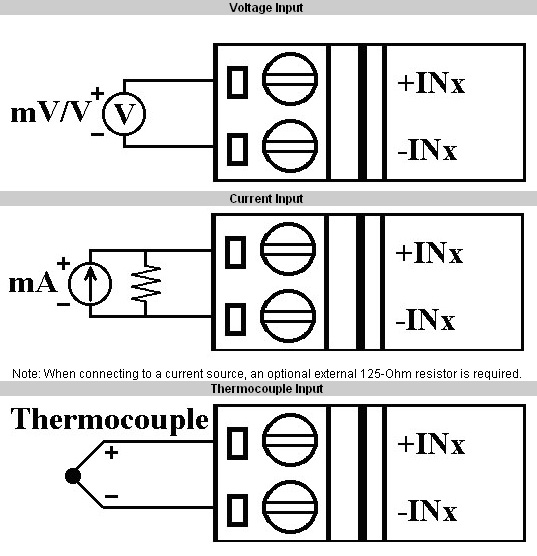

Wire Diagram

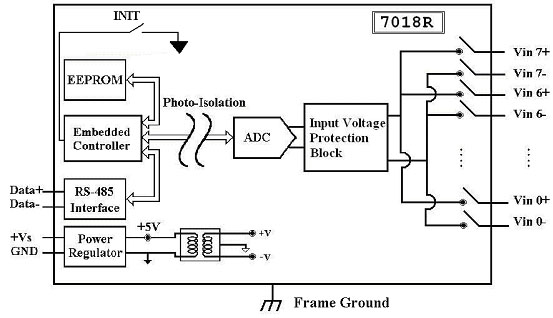

Internal I/O Structure

DCON Utility User's Manual

Calibration Procedure

CE Certification

FCC Certification

10 Channel Voltage & Current Thermocouple Input Data Acquisition Module with High Accuracy, High ESD Protection, communicable over RS-485, FREE EZ Data Logger Software and short cable

Product Pricing:

I-7018Z: $469.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

I-7018z As Supplied I-7018Z is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7018Z modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. I-7018Z comes with a daughter board for better CJC compensation. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to directly connect the units, and are also supplied with a 4" cable connector. I-7018Z comes with FREE EZ Data Logger Software.

**Kit includes 4" 25-pin connector cable, along with external module DIN-rail mounting kit**

Mounting Options

Specifications & Additional Information

Analog Input
Input Channels	10 Differential
Input Type	+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V +/-20mA, 0~20mA, 4~20mA (Requires Optional External 125 Ohm Resistor) Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
Resolution	16-bit
Sampling Rate	10 Samples/Sec (Total)
Accuracy	+/- 0.1 %
-3dB BandWidth	15.7 Hz
Zero Drift	+/- 0.5 μV/�C
Span Drift	+/- 25 ppm/�C
Common Mode Rejection	150 dB
Normal Mode Rejection	100 dB
Input Impedance	>500k Ohms
Over voltage Protection	240 Vrms
Open Thermocouple Detection	Yes
Individual Channel Configuration	Yes
Temperature outputs consistency	Yes
Stable temperature output in the field	Yes
Intra-module Isolation, Field to Logic	3000VDC
Interface
Interface	RS-485
Format	N, 8, 1
Baud Rate	1200 ~ 115200 bps
DB-1820 (3.81mm pitch)
Wire Strip Length	4 ~ 5 mm
Wire Range	16 ~ 24 AWG
DN-1822 (5.08mm ptich)
Wire Strip Length	4 ~ 5 mm
Wire Range	14 ~ 24 AWG
LED Display
1 LED as Power/Communication Indicator
Power
Input	+10 ~ +30 VDC
Power Consumption	1.0W
Environment
Operating Temperature	-25 ~ 75 �C
Storage Temperature	-40 ~ 85 �C
Humidity	5 ~ 95% RH, Non-condensing

Type	Range (�C)
J	-210 ~ +760
K	-270 ~ +1372
T	-270 ~ +400
E	-270 ~ +1000
R	0 ~ +1768
S	0 ~ +1768
B	0 ~ +1820
N	-270 ~ 1300
C	0 ~ 2320
L	-200 ~ +800
M	-200 ~ +100
L (DIN43710)	-200 ~ +900
