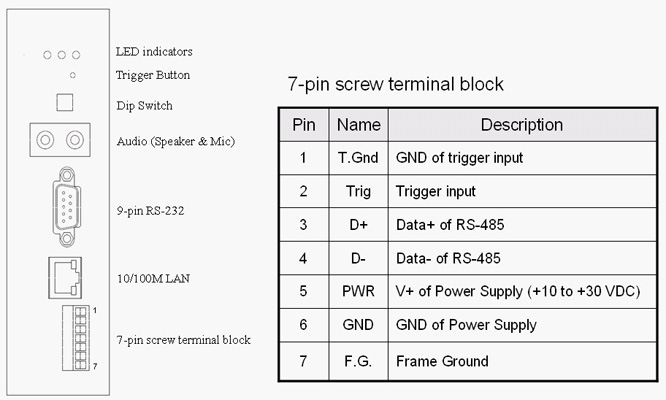

Hardware

Internal I/O Structure

Remote Maintenance Device with Voice Streaming Solution and built-in web server

Product Pricing:

M-4132: $699.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

M-4132 is an advanced remote maintenance device that provides convenient functions for manufacturers like one-to-many connections and audio functions. With M-4132, it is just like being on location. M-4132 can help engineers maintain and fix programs in remote devices very efficiently.

The M-4132 module is specially designed for remote maintenance and voice streaming solutions. This module provides 2 major networking technologies: Voice streaming and Pair connections. Pair connection means the user can operate remote COM port devices via Ethernet TCP/IP protocol just like a local COM port. Voice streaming means the user can talk to remote operators while operating remote COM-linked devices.

Remote Maintenance: Establish a Remote Maintenance System for Equipments Worldwide

Broadcasting System: Establish a Broadcasting System via Internet or Intranet

Serial Application Revolution: Upgrade Original Serial Applications to Network Applications

Web Based Administration
With M-4132's built-in web server, users can operate and set the module easily via web browser.

Supports voice streaming on networks
Provides pair connections on networks
Web-based administration
Linux 2.6 platform
Supports TCP/IP protocols
Provides dynamic DNS functions
Provides event recording and e-mail functions
Built-in web server, FTP server
Built-in RTC
Built-in self-tuner ASIC chip for RS-485 port
2500V isolated on RS-485 port
Provide LED indicators
Robust, fan less design
CE/FCC, EMI, RoHS compliance

Specifications & Additional Information

M-4132
CPU	xScale PXA-255 400 MHz processor
Flash	32M Bytes
SDRAM	64M Bytes
SRAM	256K Bytes
Ethernet	Ethernet IC: DM9000A Bit rate: 10/100Mbps Ethernet interface: RJ-45 connector Internet connection type: DHCP, Static IP, PPPoE Ethernet protocol & services: TCP/IP, Web server, FTP server, Telnet & SSH
Audio	Provide microphone input and stereo speaker output Microphone and speaker interface: 3.5mm 3-pin phone jack Volume and tone quality adjustable
COM port	Serial port - RS-232/ RS-485 COM1: RS-232 interface -- D-sub 9-pin male RS-232: TXD, RXD, RTS, CTS, GND COM2: RS-485 interface -- 2-pin screw terminal block RS-485: D+, D-, self-tuner ASIC inside Baud Rates :1200/2400/4800/9600/19200/38400/57600/115200 bps Data Format: 5/6/7/8 data bits, None/Odd/Even parity bit, 1/2 stop bit
Power Requirements	Unregulated +10 V ~ +30 VDC
Power Consumption	2.5W
Environmental	Operating temperature: -20°C ~ 60°C Storage temperature: -25°C ~ 85°C ESD protection: 2500V CE/FCC, EMI, RoHS compliance
Dimensions	160 mm x 135 mm x 44 mm (W x L x H)
