ZB-2550: RS-485 / RS-232 to Wireless ZigBee Converter (Host). Converts Serial data to Wireless communication. Typical Transmission range is 100 meters.

ZB-2550

E-mail this Product

Product Reference & Support :

User's Manual

Quick Start Guide

Software

RS-485 / RS-232 to Wireless ZigBee Converter (Host). Converts Serial data to Wireless communication. Typical Transmission range is 100 meters.

Product Pricing:

Features

*** The ZB-2550 has been phased out and replaced by the ZB-2550-T which meets CE and FCC certifications ***

The ZB-2550/ZB-2551 is a RS-485/RS-232 to ZigBee Network converter. It enables RS-232/RS-485 devices to be wirelessly and easily connected to a new or existing system.

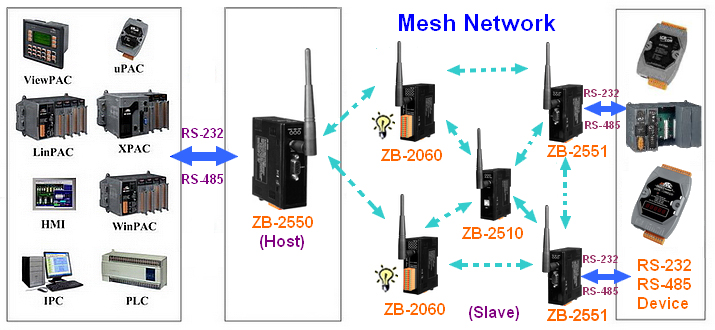

The ZB-2550 is net Host and the ZB-2551 is net Slave.It also supports various data formats and Baud Rates that can be configured via a Windows-based GUI utility. The ZB-2550 and the ZB-2551 can implement an ad-hoc, star or mesh network topology.

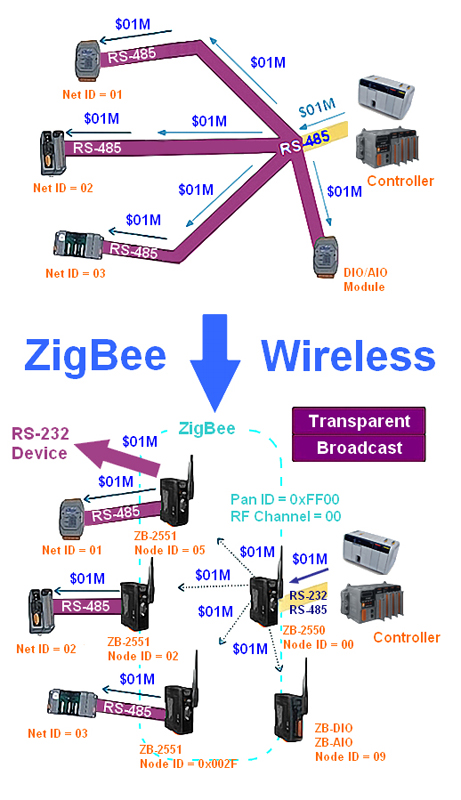

In some existing systems that use a RS-485/RS-232 network, it is sometimes difficult to extend the new devices due to building structure issues, wiring problems or other reasons. The ZB-2550 and the ZB-2551 can be easily added to an existing system in order to extend your network.

The typical transmission range of the ZB-2550/ZB-2551 converter is 100 m, and the ZB-2550P/ZB-2551P is 700 m.

Supports Encryption
ISM 2.4 GHz operating frequency
Fully compliant 2.4G IEEE802.15.4 / ZigBee specifications.
Wireless transmission range up to 100 m(Line of sight).
GUI configuration software (Windows version).
DIN-Rail mount.

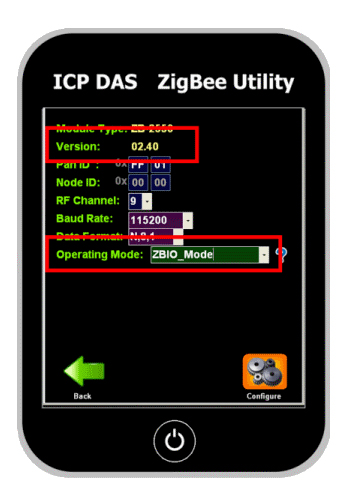

Operating Mode

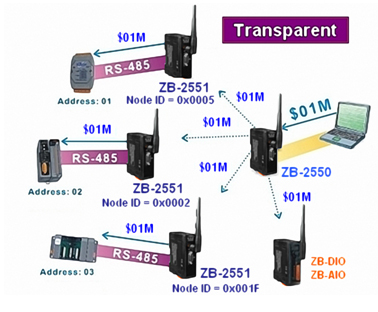

Transparent: (Original data will be broken down into many small data, each small data is 50 Byte)

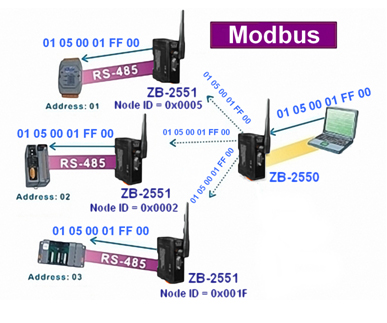

Modbus: (Original data won't be broken down into small data)

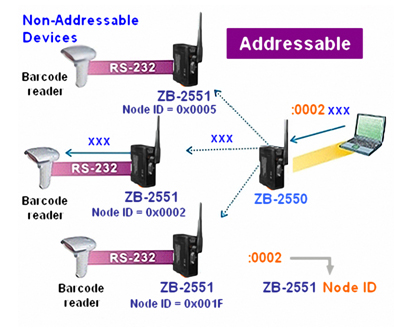

Addressable: (Original data won't be broken down into small data)

Applications

Specifications & Additional Information

Core
CPU	8-bit microcontroller
EEPROM	128Bytes bytes (8 blocks, each block has 256 bytes); Data retention > 40 years; 1,000,000 erase/write cycles.
Communication Interface
COM0	RS-232 (TXD, RXD and GND);D-SUB9 Female, Non-isolation
COM0	RS-485 (D+, D-; self-tuner ASIC inside); Non-isolation
LED Indicators	Power (Red), Zigbee Rx (Yellow), Zigbee Net State (Green)
COM 0 Settings
Baud Rate	1200~115200 bps
Data Bit	8
Parity Check	Even, Odd, None
Stop Bit	1
Power
Protection	Power reverse polarity protection
EMS Protection	ESD,Surge, EFT
Required Supply Voltage	+10 to +30VDC
Power consumption	0.5W
Connection	5-Pin 5.08mm Removable Terminal Block
Dimensions
Case	Plastic
Flammability	UL 94V-0 materials
Dimensions	33mm x 107mm x 78mm (W x H x D)
Installation	DIN-Rail
Operating Environment
Operating Temperature	-25�C to +75�C
Storage Temperature	-40�C to +80�C
Relative Humidity	5% to 95% Non-condensing

Zigbee Module

RF channels	16
Receive sensitivity	-102 dBm
Transmit power	12 dBm
Data encryption	128-bit AES
Network Topology support	Star, Mesh and Cluster tree
Certification	TUV(ZCP)
Antenna	2.4GHz - 3dBi Omni-Directional antenna
